Features

Precise sampling, quantification and injection with adjustable speed

Suitable for various fluids

Automatic stop for overrange protection, emergency stop and automatic reset.

The sampling volume can be observed by the positioning pin or precisely determined by    the motor driver

Application

It can be used for precise sampling of various analytical instruments for industries ,  laboratories or scientific research institutes.、

Features

The barrel and piston are made of ceramic material that has wear resistance corrosion resistance and high-temperature resistance, which is suitable for various fluids.

Easy assemble achieved by connecting the female threaded inlet/outlet ports in the barrel and male threaded connectors.

Simple and compact structure, easy installation and disassembly.

Fluid path can be switched by the host computer with RS-485 serial port communication.

The shape and size can be designed and processed according to customer's needs.

Can be controlled with optional motor driver.

Patent No. 202023227755.5.

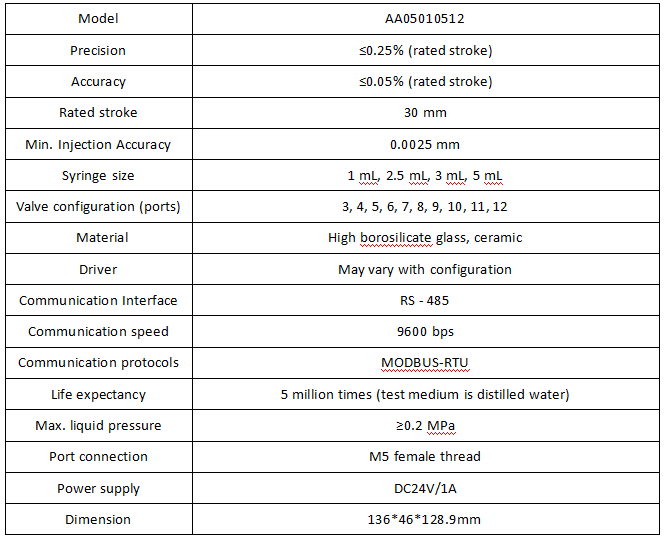

Parameters

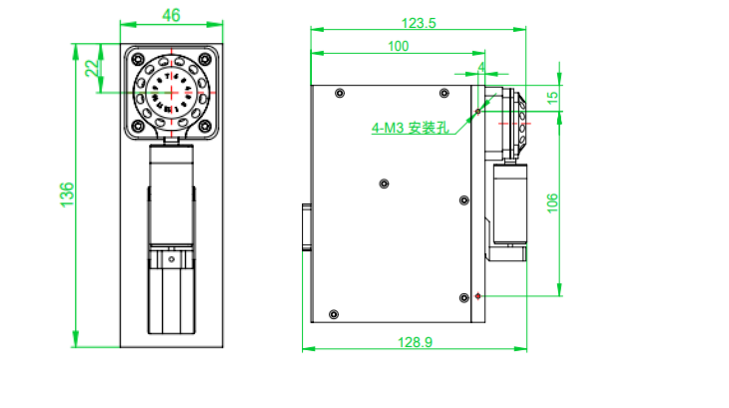

Injection pump size
