Features

No sealing ring or compression ring needed, standard thread with exceptional sealing performance

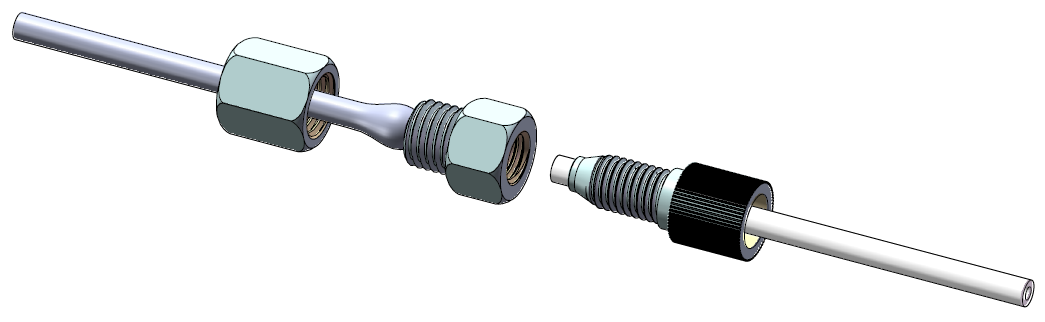

The male threaded part connects the soft and hard tubing with easy and convenient assembly.

Assembled with one-piece inverted cone fitting or flat-head connector, soft and hard tubings of different ODs can be connected.

Excellent resistance to high temperature and pressure.

Multiple use

High temperature and pressure resistance

Hand tightening. Exceptional sealing performance up to 1 standard atmosphere.

Simple structure, easy disassembly.

The shape and size can be designed and manufactured according to customer's needs.

Application

With resistance to high temperature, high pressure, acid and alkali it can be applied in the fields of biopharmaceutical, chemical, environmental protection, food and other industries.

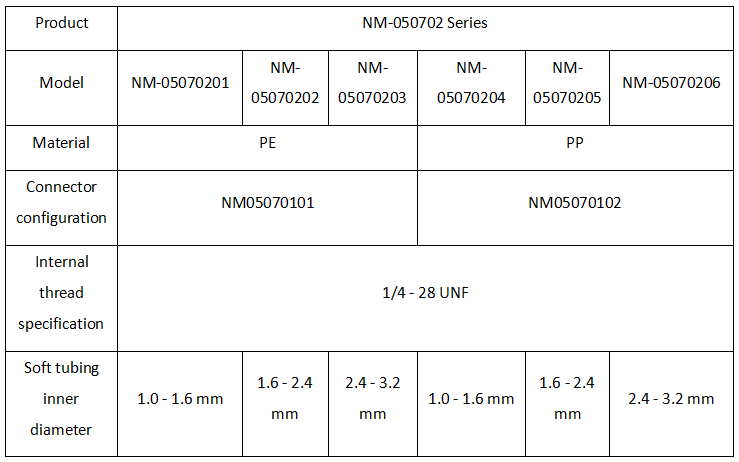

Parameters

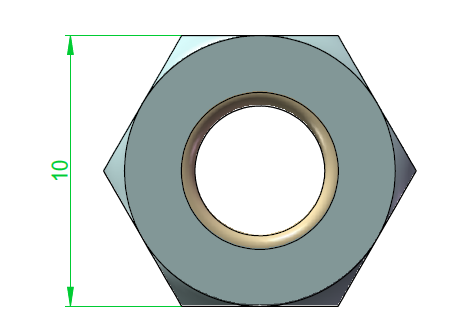

Dimensions：(unit: mm)

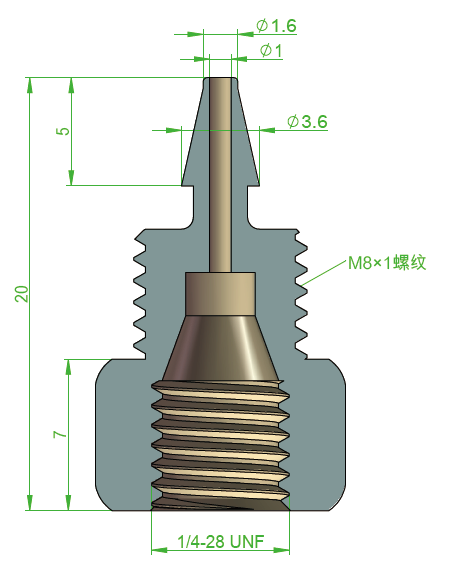

(1)  Female Straight-through Anti-release Coupling

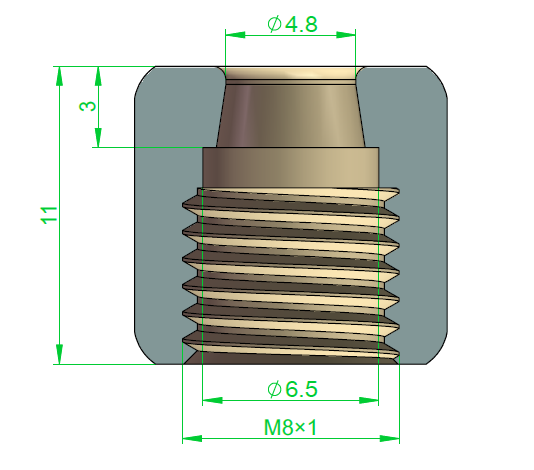

(2) Self-clinching stud
