Features

No sealing ring or compression ring needed.

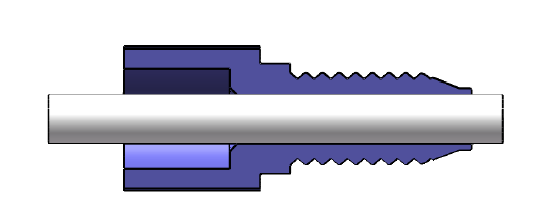

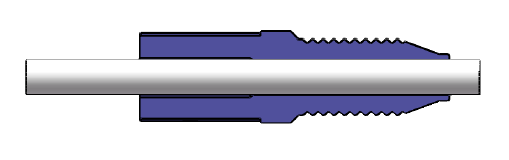

The special design of the front end reduces the requirement of machining accuracy for the corresponding interface, and improves the sealing performance.

Excellent resistance to high temperature and pressure.

Multiple use

Hand tightening. Exceptional sealing performance up to 1 standard atmosphere.

Simple structure, easy disassembly.

The shape and size can be designed and manufactured according to customer's needs.

Patented number: 201920370855.1

Application

With resistance to high temperature, high pressure, acid and alkali it can be applied in the fields of biopharmaceutical, chemical, environmental protection, food and other industries.

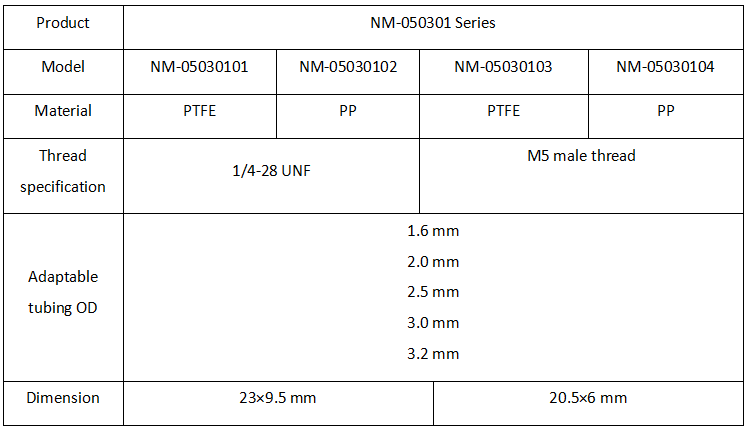

Parameters

Dimensions: (unit: mm)

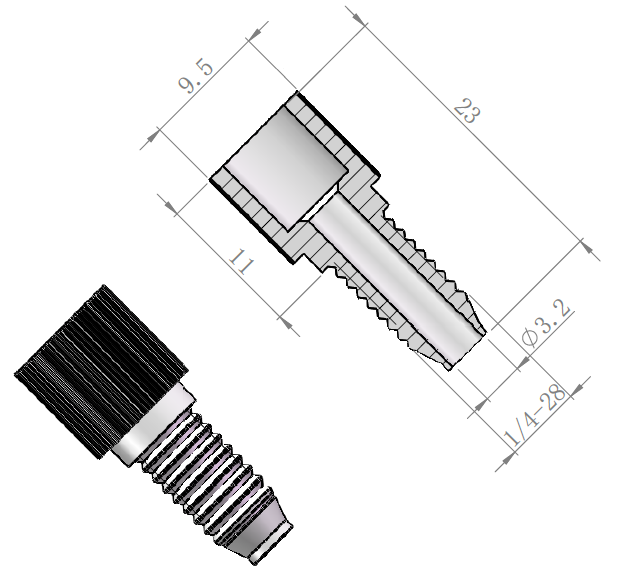

1.NM-05030101; NM-05030102 series

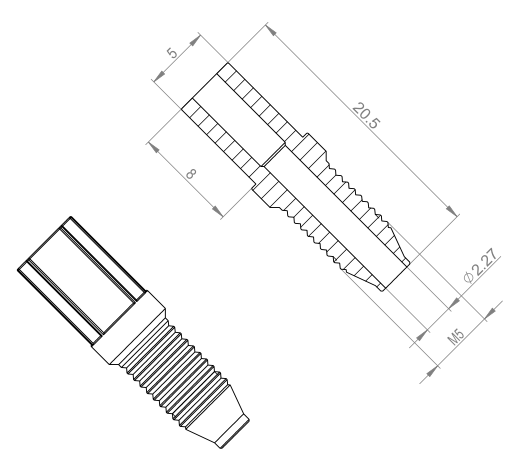

2.NM-05030103; NM-05030104 series
